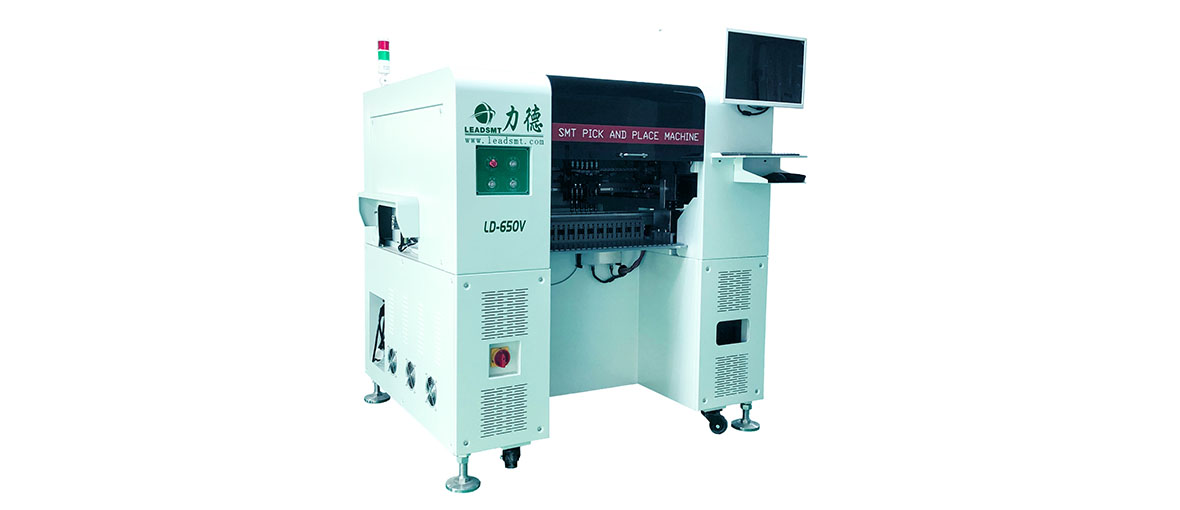

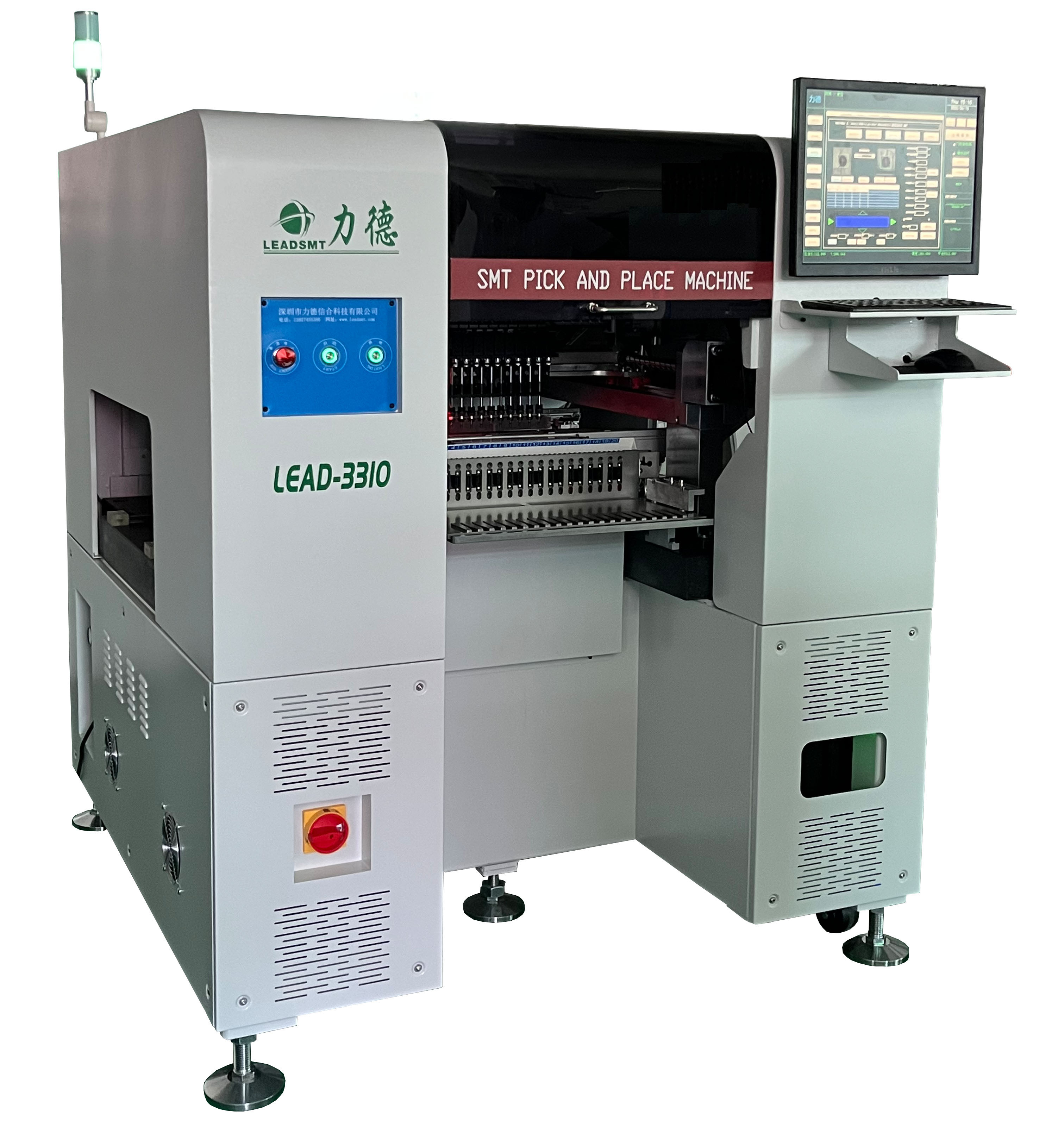

0.6m Smt Pick and Place Machine

HIWIN Guide rail(slide way)from Taiwan combination with THK Grind treated screw ball rod from Japan .
driven by Panasonic Servo motor.
computer operation system use Windows 7 Industrial computer system with DFI main control board and GreatWall driver.
Electric feeding system with 8mm ,12mm,16mm,24mm,32mm optional .

Technical Specifications:

Model	LEAD-2208
Working Type	Online, Fully automatic
Mounting Heads	8 Pieces
Nozzle Head Structure	Spline crash proof structure ,allow the fresh/new operators make a mistake sometimes,only change nozzle is ok ,no need change the nozzle head structure fixtures .
Stable practical Speed	30000-35000cph
Max Speed	40000cph
Position Accuracy	±0.03mm With 5 million pixels position Sony cameras
Placement accuracy	±0.05mm,with visual pick up check cameras for each nozzle, visual flying cameras adopt 3 millions pixels Visual Sony CCD cameras .
Max moving range(X,Y)	X axis 6220mm, Y axis 430mm
Z axis max moving range	15mm
Position and programming Method	1.Keyboard and mouse input 2.Vision Mark Points Position recognition. 3.PCB Gerber file input
Max Mounting PCB size	600mm*350mm(in One cycle)
Mounting components type	Including and above 0402 smd components like resistors ,ics ,smd capacitors,all kinds of leds such as 2835,3014,3030, 4040, 5050, 5630,5730,7070 and high powers leds,resistor like 0603,0805 etc.
No. Of Feeder Positions	20 Pieces of electric feeder Positions,vibration feeders optional
Feeder sizes available	8mm,12mm,16mm, 24mm ,32mm
Operation System	Windows 7.
Pressure detective system	Negative air pressure detective system with digital display .
PCB Width adjustment	By electrical Button control
Vacuum acceleration and system stability	Equipped with 4 sets of vacuum pumps with air blow acceleration system and stable pressure for components pick up
Weight	Approx 1000kg
Power Supply	Single Phrase ,220Vac, 50/60Hz,1.2KW
Dimensions	128CM(L)133CM(W)150CM(H)
