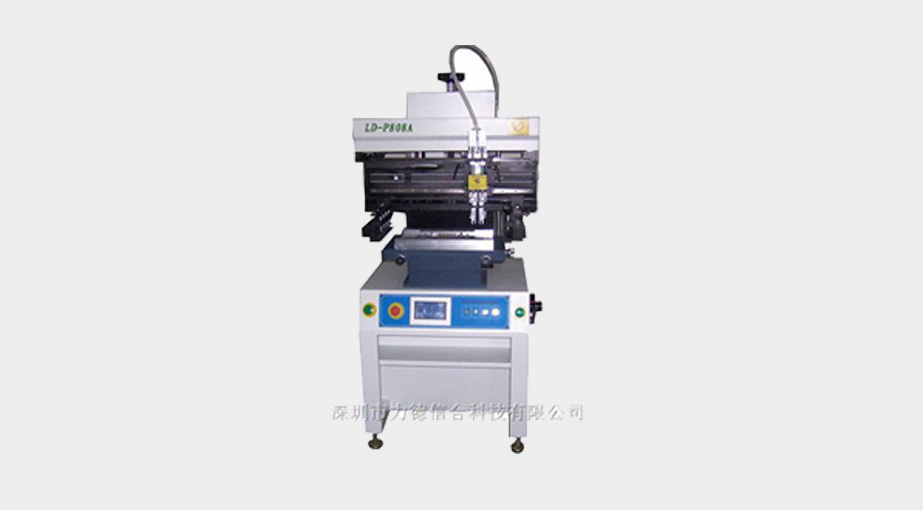

0.6 Meter Tin Paste Printer
LD-P808A
* Suspend scraper can auto-balance squeegee pressure,prolong the life of scraper and steel toil,enusre to print reliablely;
* Four points steel toil orientation,auto-lock for air cylinder,print repeat accuracy is ±0.02mm,use different size toil for move toil frame;
* Scraper pressure number display,it is suitable for lead-free process of stainless steel scraper,200-250 can be chosen;
* Industry products computer plc control,it is stable and reliable;
* Beehive bottom board,thimbles move support board,agile orientate pcb,easy to print dual sides pcb;
* Print table angle can be micro-adjusted by coordinate;
* Simple set print parameters,scraper speed on lcd,sanling plc and touch-screen control mmi;
* Precision linearity rail move and ensure to print exactly and high repeat precision.
Parameter
Max board size |
600×300mm |
Printing table size |
680×330mm |
Screen frame size |
440×370mm~800×550mm |
Squeegee speed |
0-100mm/sec |
Power requirements |
220v 1P 50/60hz |
Power for operation |
100w |
Positioning system |
pc bouter or pin positioning |
Adjusting for table |
Front/back±10mm Right/left±10mm |
Printing accuracy |
±0.02mm |
Repenting accuracy |
±0.02mm |
Air used |
4-7kg/cm2 |
Machine dimension |
1000x720x1680mm |
